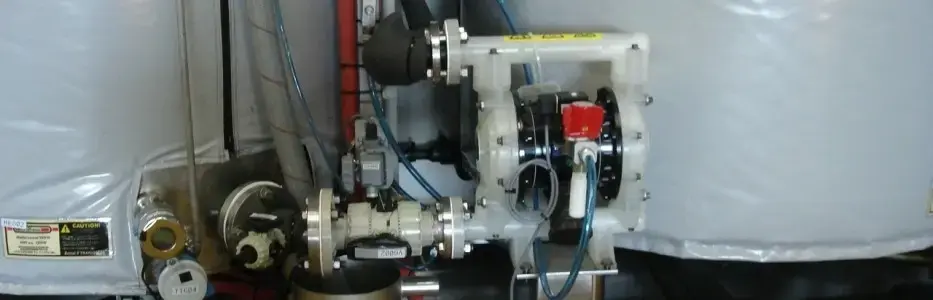

Most air operated diaphragm pump repairs come down to a small group of wear parts: the diaphragms, the check balls and seats (the ball valves inside the pump), and the air valve seals. If you know your pump's brand and model, we can identify the right part and confirm the material for your liquid.
Global Pumps supplies a complete range of air diaphragm pump parts to industries across Australia and we’re not tied to one brand - instead, we source air operated diaphragm pump parts from leading manufacturers around the world. Whether you’re replacing worn diaphragms, ball valves, or seals, we can supply the right components quickly and reliably.
Send us the brand, model, and serial number from the pump nameplate and we will come back with the part and your options. For Verderair pumps, you can also look up the exploded diagram and part numbers yourself in our parts catalogue.
An air operated diaphragm pump (AOD or AODD) moves liquid by flexing two diaphragms, which an air valve drives back and forth. The AOD pump parts below are the ones we are asked for most. Wear depends on the liquid, the air pressure, and how fast the pump cycles, so follow the manufacturer's manual for service intervals.
|
Part |
Materials |
|
Diaphragms |
PTFE, Santoprene, or Buna (nitrile, also called NBR), matched to the liquid |
|
Check balls and seats (the ball valves) |
PTFE, Santoprene, or Buna, matched to the liquid |
|
Wet end repair kit (seats, balls, and diaphragms; also sold as a wet end service kit) |
Matched to the pump body and the liquid, for example polypropylene with PTFE or Santoprene, or PVDF (polyvinylidene fluoride) with PTFE |
|
Air valve repair kit, air motor kit, and centre section rebuild kit |
Set by the pump model |
We supply spare parts in materials suited to liquids from clean water to corrosive chemicals and viscous slurries. No single material suits every liquid. Compatibility depends on the chemical, its concentration, the temperature, and how long the part is in contact with it. PTFE resists a wide range of chemicals, while elastomers such as EPDM, Buna, and Santoprene flex more easily and suit different liquids and temperatures. We confirm the material against your liquid before we supply it, and the manufacturer's chemical resistance data is the final check.
The contents of a wet end repair kit or air valve repair kit vary by pump model, so we confirm what is in the kit before we quote. We also supply accessories such as flanges and air filter regulators.
For 50 years we have supported Australian industry, including manufacturing, mining, food production, and chemical processing. We identify compatible parts, advise on materials, and help with preventive maintenance. For critical pumps, keeping a wet end repair kit and an air valve repair kit on the shelf is a common way to shorten repair time.
Case Study: Selecting the Best Pump for Ethanol Transfer in a Queensland Brewery
When a Queensland brewery needed a safe and efficient solution for ethanol transfer, Global Pumps helped select the ideal diaphragm pump and matching spare parts. The result was improved performance, reliability, and long-term cost savings.
Get in touch with Global Pumps for expert advice and fast supply of diaphragm pump spare parts. For reliable products, quick delivery, and trusted technical support, Global Pumps remains Australia’s leading choice for pump solutions.
